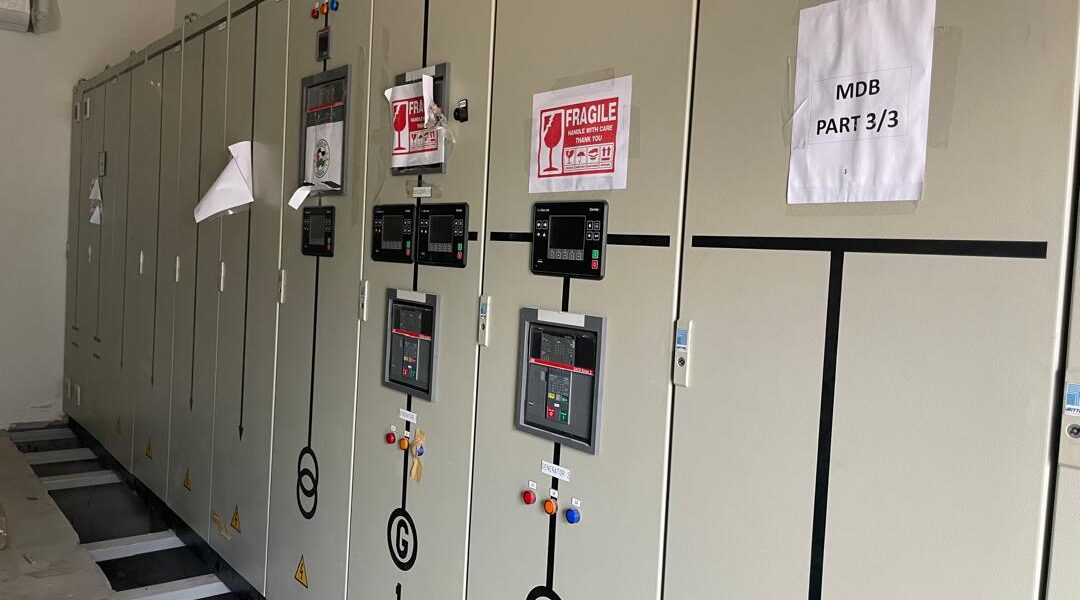

ABB Main & Sub LV Switchgear Panels
Client | Location:
Mega Pipes Solution Limited (HDPE Pipe Industry)
Location – Kisarawe II
Year: 2022 / 2023
Project description
This project involved the Assembly and Supply of Low Voltage (LV) Switchgear Panel 2000A for a system consisting of 1×1500 kVA transformers and 3×500 kVA Diesel generators synchronized via a
CompAp Control System.
The setup was engineered to achieve optimum load shedding for the PVC and HDPE pipe manufacturing Industrial (Mega Pipes Solution
Limited) Kisarawe II Industrial Area The system was designed for high reliability, operational safety, and efficiency in power distribution.
Supply of Type-Tested LV Switchgear Panels IEC 61439 Internal Arc Tested to IEC standards IEC 61641 System Integration synchronization for
Transformers and Diesel Generators Factory acceptance testing and quality verification prior to delivery.
Key Features
Type Tested Assembly to IEC 61439-2 and IEC 60439-1.
Robust, modular and compact constructionTested to comply with Internal Arc Tests IEC 61641 Rated operational voltage: 690V AC
Rated current: Up to 6300A
Rated short time withstand current: Up to 100kA
Ingress Protection class to IEC 529: IP 54 Typical form of separation: Form 1 to Form 4
Colour RAL 7035 Epoxy-Polyester Paint
